Banana Pi NAS BanaNas mit Open Media Vault Performance

0
3588
Banana Pi NAS BanaNas mit Open Media Vault

Für den Banana Pi gibt es auch ein eigens NAS Image. Das BanaNas ist ein Raspbian Debian mit installiertem OpenMediaVault, welches als eigenständiges Image ebenfalls auf Debian basiert.
Einer der großen Vorteile vom Banana Pi gegenüber dem Raspberry Pi ist die schnelle Gb LAN Netzwerkkarte. Dazu hat der Banana Pi ein SATA Port, an dem man eine Festplatte anschließen kann.
Da es sich bei diesem System doch um ein sehr leistungsschwaches System handelt, darf man nicht zu viel erwarten. Die Tests sind jedoch überraschend gut ausgefallen, wenn man bedenkt, dass die Banana Pi Platine nur 3 Watt Strom benötigt.
Mit USB Festplatten hat das System jedoch einige Probleme. Wenn sie in den Energiesparmodus gehen, so wachen sie manchmal nicht auf. Hier muß man leider die Energiesparfunktion abschalten, damit man immer Zugriff auf die Daten hat.

Fehler Banana Pi NAS BanaNas:

  • Es Probleme, wenn man zusätzliche Module installiert. Die zusätzlichen Module sind teilweise in der Standardinstallation auf dem gleichen Port installiert und können dadurch dann nicht mehr starten.
  • Zusätzliche Module wie OwnCloud laufen extrem langsam.
  • In der Konsole wird als Benutzername admin und Passwort openmediavault angezeigt. Das Passwort ist jedoch bananas.

Hier nun die Testergebnisse vom Banana Pi BanaNas / Open Media Vault

Test mit Festplatte am SATA Port
1. Test lesen und schreiben mit 4KB Blockgröße
Banana Pi NAS 4K Blockgröße
Banana Pi NAS 4K Blockgröße
Writing / reading 20 files with 100MiB each.
Buffers: 4096 byte read / 4096 byte write.

Writing file 1: 15647ms / 6MiB/s
Writing file 2: 15113ms / 7MiB/s
Writing file 3: 15579ms / 6MiB/s
Writing file 4: 16488ms / 6MiB/s
Writing file 5: 15244ms / 7MiB/s
Writing file 6: 15327ms / 7MiB/s
Writing file 7: 14618ms / 7MiB/s
Writing file 8: 15638ms / 6MiB/s
Writing file 9: 15450ms / 6MiB/s
Writing file 10: 14967ms / 7MiB/s
Writing file 11: 14586ms / 7MiB/s
Writing file 12: 17000ms / 6MiB/s
Writing file 13: 14971ms / 7MiB/s
Writing file 14: 15959ms / 6MiB/s
Writing file 15: 15759ms / 6MiB/s
Writing file 16: 15853ms / 6MiB/s
Writing file 17: 15764ms / 6MiB/s
Writing file 18: 14755ms / 7MiB/s
Writing file 19: 14638ms / 7MiB/s
Writing file 20: 14915ms / 7MiB/s

Writing done.
Reading...

Reading file 1: 12961ms / 8MiB/s
Reading file 2: 12982ms / 8MiB/s
Reading file 3: 13595ms / 7MiB/s
Reading file 4: 14076ms / 7MiB/s
Reading file 5: 13584ms / 7MiB/s
Reading file 6: 13792ms / 7MiB/s
Reading file 7: 13917ms / 7MiB/s
Reading file 8: 13774ms / 7MiB/s
Reading file 9: 14283ms / 7MiB/s
Reading file 10: 14287ms / 7MiB/s
Reading file 11: 14355ms / 7MiB/s
Reading file 12: 13274ms / 8MiB/s
Reading file 13: 13357ms / 7MiB/s
Reading file 14: 13242ms / 8MiB/s
Reading file 15: 13231ms / 8MiB/s
Reading file 16: 13032ms / 8MiB/s
Reading file 17: 13634ms / 7MiB/s
Reading file 18: 13862ms / 7MiB/s
Reading file 19: 13459ms / 7MiB/s
Reading file 20: 13070ms / 8MiB/s

Summary:
Average write time: 14934ms.
Average write speed: 7MiB/s
Average read time: 13308ms.
Average read speed: 8MiB/s
2. Test lesen und schreiben mit 1024KB Blockgröße

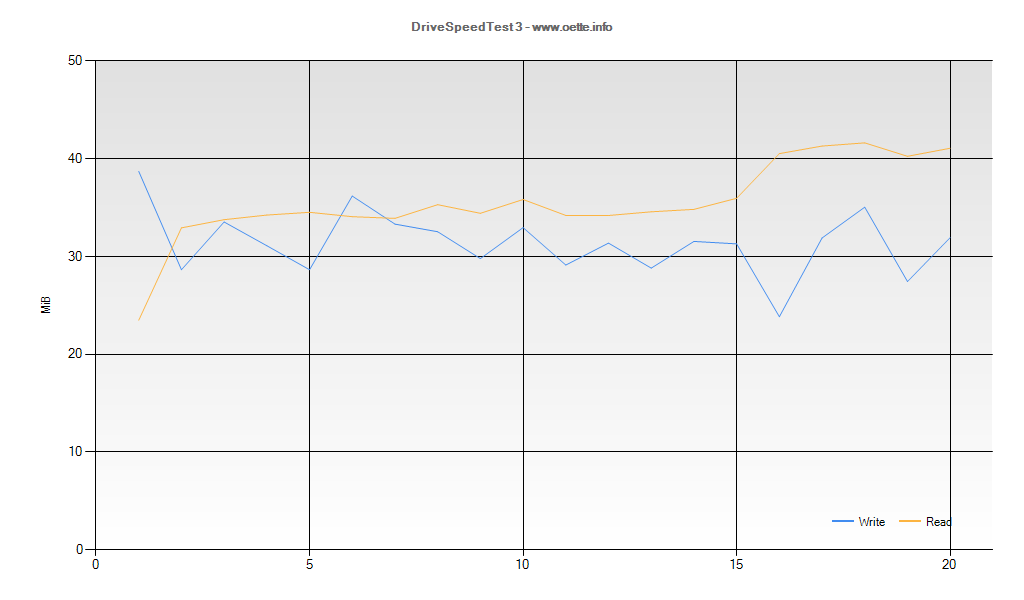

Banna Pi NAS 1024KB Blockgröße
Banna Pi NAS 1024KB Blockgröße
Writing / reading 20 files with 100MiB each.

Writing file 1: 2583ms / 39MiB/s
Writing file 2: 3490ms / 29MiB/s
Writing file 3: 2982ms / 34MiB/s
Writing file 4: 3215ms / 31MiB/s
Writing file 5: 3490ms / 29MiB/s
Writing file 6: 2763ms / 36MiB/s
Writing file 7: 3001ms / 33MiB/s
Writing file 8: 3073ms / 33MiB/s
Writing file 9: 3357ms / 30MiB/s
Writing file 10: 3034ms / 33MiB/s
Writing file 11: 3433ms / 29MiB/s
Writing file 12: 3187ms / 31MiB/s
Writing file 13: 3470ms / 29MiB/s
Writing file 14: 3170ms / 32MiB/s
Writing file 15: 3195ms / 31MiB/s
Writing file 16: 4194ms / 24MiB/s
Writing file 17: 3135ms / 32MiB/s
Writing file 18: 2853ms / 35MiB/s
Writing file 19: 3644ms / 27MiB/s
Writing file 20: 3131ms / 32MiB/s

Writing done.
Reading...

Reading file 1: 4258ms / 23MiB/s
Reading file 2: 3036ms / 33MiB/s
Reading file 3: 2961ms / 34MiB/s
Reading file 4: 2920ms / 34MiB/s
Reading file 5: 2896ms / 35MiB/s
Reading file 6: 2934ms / 34MiB/s
Reading file 7: 2949ms / 34MiB/s
Reading file 8: 2832ms / 35MiB/s
Reading file 9: 2905ms / 34MiB/s
Reading file 10: 2790ms / 36MiB/s
Reading file 11: 2923ms / 34MiB/s
Reading file 12: 2924ms / 34MiB/s
Reading file 13: 2892ms / 35MiB/s
Reading file 14: 2871ms / 35MiB/s
Reading file 15: 2781ms / 36MiB/s
Reading file 16: 2467ms / 41MiB/s
Reading file 17: 2421ms / 41MiB/s
Reading file 18: 2402ms / 42MiB/s
Reading file 19: 2484ms / 40MiB/s
Reading file 20: 2434ms / 41MiB/s

Summary:
Average write time: 3261ms.
Average write speed: 31MiB/s
Average read time: 2455ms.
Average read speed: 41MiB/s
Test mit Festplatte am USB Port
1. Test lesen und schreiben mit 4KB Blockgröße
Banana NAS USB HD 4K
Banana NAS USB HD 4K
Writing / reading 20 files with 100MiB each.
Buffers: 4096 byte read / 4096 byte write.

Writing file 1: 17701ms / 6MiB/s
Writing file 2: 16331ms / 6MiB/s
Writing file 3: 16782ms / 6MiB/s
Writing file 4: 17187ms / 6MiB/s
Writing file 5: 18748ms / 5MiB/s
Writing file 6: 19632ms / 5MiB/s
Writing file 7: 19677ms / 5MiB/s
Writing file 8: 15860ms / 6MiB/s
Writing file 9: 18178ms / 6MiB/s
Writing file 10: 17405ms / 6MiB/s
Writing file 11: 19500ms / 5MiB/s
Writing file 12: 18532ms / 5MiB/s
Writing file 13: 16484ms / 6MiB/s
Writing file 14: 17455ms / 6MiB/s
Writing file 15: 15797ms / 6MiB/s
Writing file 16: 17230ms / 6MiB/s
Writing file 17: 15777ms / 6MiB/s
Writing file 18: 17234ms / 6MiB/s
Writing file 19: 17572ms / 6MiB/s
Writing file 20: 17798ms / 6MiB/s

Writing done.
Reading...

Reading file 1: 16919ms / 6MiB/s
Reading file 2: 13262ms / 8MiB/s
Reading file 3: 15589ms / 6MiB/s
Reading file 4: 15641ms / 6MiB/s
Reading file 5: 13707ms / 7MiB/s
Reading file 6: 14104ms / 7MiB/s
Reading file 7: 13501ms / 7MiB/s
Reading file 8: 13712ms / 7MiB/s
Reading file 9: 14319ms / 7MiB/s
Reading file 10: 13530ms / 7MiB/s
Reading file 11: 13335ms / 7MiB/s
Reading file 12: 12761ms / 8MiB/s
Reading file 13: 13251ms / 8MiB/s
Reading file 14: 13214ms / 8MiB/s
Reading file 15: 12659ms / 8MiB/s
Reading file 16: 13337ms / 7MiB/s
Reading file 17: 12974ms / 8MiB/s
Reading file 18: 13020ms / 8MiB/s
Reading file 19: 12625ms / 8MiB/s
Reading file 20: 12031ms / 8MiB/s

Summary:
Average write time: 17491ms.
Average write speed: 6MiB/s
Average read time: 12431ms.
Average read speed: 8MiB/s
2. Test lesen und schreiben mit 1024KB Blockgröße

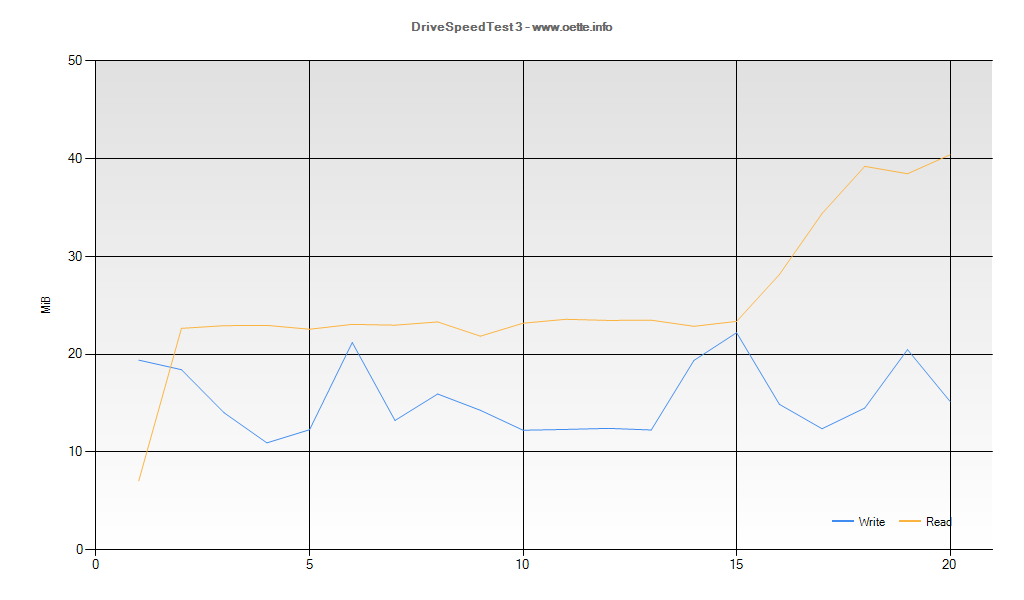

Banana Pi NAS 1024K USB HD
Banana Pi NAS 1024K USB HD
Writing / reading 20 files with 100MiB each.

Writing file 1: 5153ms / 19MiB/s
Writing file 2: 5428ms / 18MiB/s
Writing file 3: 7137ms / 14MiB/s
Writing file 4: 9142ms / 11MiB/s
Writing file 5: 8142ms / 12MiB/s
Writing file 6: 4715ms / 21MiB/s
Writing file 7: 7562ms / 13MiB/s
Writing file 8: 6274ms / 16MiB/s
Writing file 9: 7010ms / 14MiB/s
Writing file 10: 8179ms / 12MiB/s
Writing file 11: 8123ms / 12MiB/s
Writing file 12: 8052ms / 12MiB/s
Writing file 13: 8160ms / 12MiB/s
Writing file 14: 5163ms / 19MiB/s
Writing file 15: 4502ms / 22MiB/s
Writing file 16: 6720ms / 15MiB/s
Writing file 17: 8075ms / 12MiB/s
Writing file 18: 6896ms / 15MiB/s
Writing file 19: 4884ms / 20MiB/s
Writing file 20: 6595ms / 15MiB/s

Writing done.
Reading...

Reading file 1: 14188ms / 7MiB/s
Reading file 2: 4414ms / 23MiB/s
Reading file 3: 4362ms / 23MiB/s
Reading file 4: 4355ms / 23MiB/s
Reading file 5: 4432ms / 23MiB/s
Reading file 6: 4336ms / 23MiB/s
Reading file 7: 4352ms / 23MiB/s
Reading file 8: 4290ms / 23MiB/s
Reading file 9: 4576ms / 22MiB/s
Reading file 10: 4314ms / 23MiB/s
Reading file 11: 4241ms / 24MiB/s
Reading file 12: 4262ms / 23MiB/s
Reading file 13: 4257ms / 23MiB/s
Reading file 14: 4374ms / 23MiB/s
Reading file 15: 4279ms / 23MiB/s
Reading file 16: 3551ms / 28MiB/s
Reading file 17: 2907ms / 34MiB/s
Reading file 18: 2549ms / 39MiB/s
Reading file 19: 2599ms / 38MiB/s
Reading file 20: 2474ms / 40MiB/s

Summary:
Average write time: 6269ms.
Average write speed: 16MiB/s
Average read time: 2632ms.
Average read speed: 38MiB/s
Fazit Banana Pi NAS BanaNas mit Open Media Vault: Man darf sich keine Wunder oder Hochleistungsserver erwarten. Die Performance ist jedoch nicht so schlecht für die kleine Platine. Es gibt viele fertige NAS Systeme die auch über eine 1000Mbit Netzwerkkarte verfügen aber die Leistung vom Banana Pi nicht erbringen. Besonders im Billigbereich sind die Leistungen der fertigen NAS Systeme sehr schlecht. Dies ist aber auch kein Wunder, wenn man sich die Preise ansieht. Teilweise bekommt man NAS Systeme zum selben Preis wie die nackte Festplatte. Hier kann dann natürlich für den Server kaum noch etwas übrig bleiben.

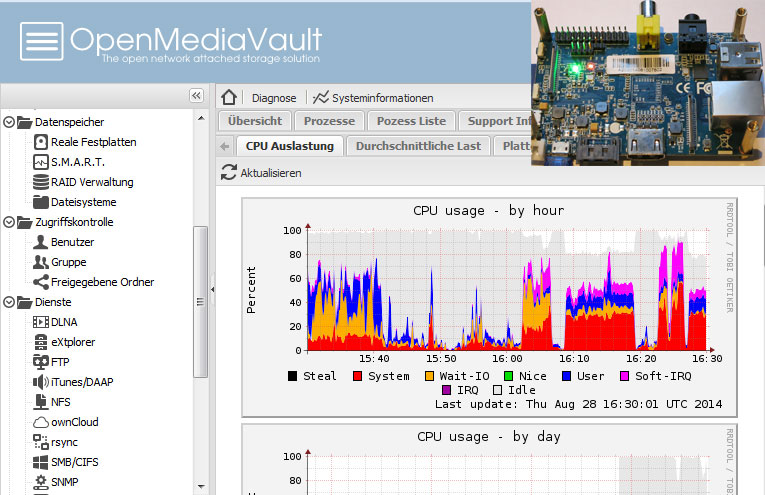

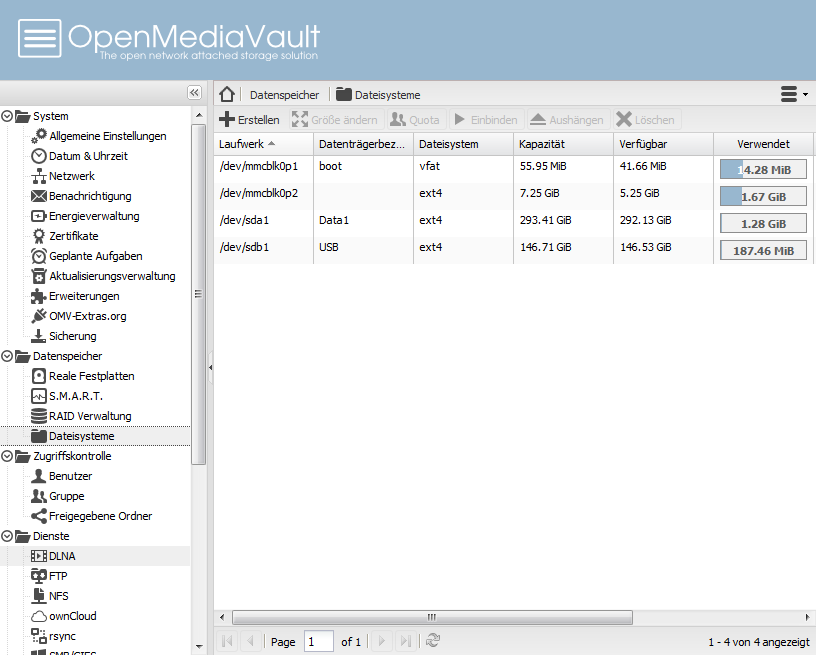

Bilder von Banana Pi NAS BanaNas mit Open Media Vault
